Step 5: Make Payment

This is the central step in your integration — processing transactions via a single unified endpoint (POST /v2/topup) that handles all product types, including JomPAY, mobile recharge, gift cards, vouchers, eSIM purchases, and more.

API Reference

For the full endpoint specification (headers, request body, response schema, and examples), see Make Payment API Reference.

How It Works

1. Initiate payment — Call POST /v2/topup with a unique refid, the product code, account number, and amount.
2. Handle the response — Check data.status for the outcome:
   • Accepted — Transaction accepted, processing will begin.
   • Processing — Transaction still in progress. Re-query with the same refid and parameters.
   • Succesful — Transaction completed. Display the result to the user.
   • Failed — Transaction failed. Check data.statusCode for the reason.
3. Check final status — If the response was Processing or you encountered a network error, re-call the same endpoint with the identical refid and parameters.

Spelling Note

The success status value is spelled Succesful (single 's'), not Successful. This is a legacy quirk that cannot be changed. Match this exact string in your code.

Status	StatusCode	Description	Retryable
Accepted	0	Transaction accepted, processing will begin	Yes (re-query with same refid)
Processing	1	Transaction is being processed	Yes (re-query with same refid)
Succesful	20	Transaction completed successfully	No
Failed	40-61 (excl. 53)	Transaction failed (see statusCode for reason)	No (use new refid)
Refund	53	Transaction voided and refunded	No

Recommended Polling Strategy

When a transaction returns Processing, poll every 5-10 seconds by re-querying with the same refid. Most transactions resolve within 30 seconds. Always combine polling with callbacks — polling provides immediate UX feedback, while callbacks are the reliable final status delivery mechanism.

Retries — Do Not Generate a New refid

The API is idempotent: calling POST /v2/topup with the same refid will return the existing transaction, never create a duplicate. When retrying a payment — whether due to a Processing status, a network timeout, or any other error — reuse the original refid and parameters. Generating a new refid on retry will create a duplicate charge. Only generate a new refid for a genuinely new transaction.

Extras Parameters by Product

The extras object in the request body has different requirements depending on the product:

Parameter	JomPAY	PTPTN	Mobile Data	Others
subproduct_code	-	Mandatory	Mandatory	-
ic_number	Mandatory (payee IC)	Mandatory (recipient IC)	-	-
biller_code	Mandatory	-	-	-
ref2	Conditional	-	-	-

ref2 is required by some JomPAY billers. The ref2 value is typically printed on the user's JomPAY bill. Use bill presentment to validate. The API returns an error if ref2 is required but not provided.

AMLA Compliance — JomPAY

DANGER

Due to AMLA (Anti-Money Laundering Act 2001) requirements, it is mandatory to perform eKYC on your end-users for all JomPAY transactions. Pass the verified IC number (Malaysians) or Passport number (non-Malaysians) via the ic_number field. Failure to comply, or providing fictitious/invalid numbers, may lead to account suspension.

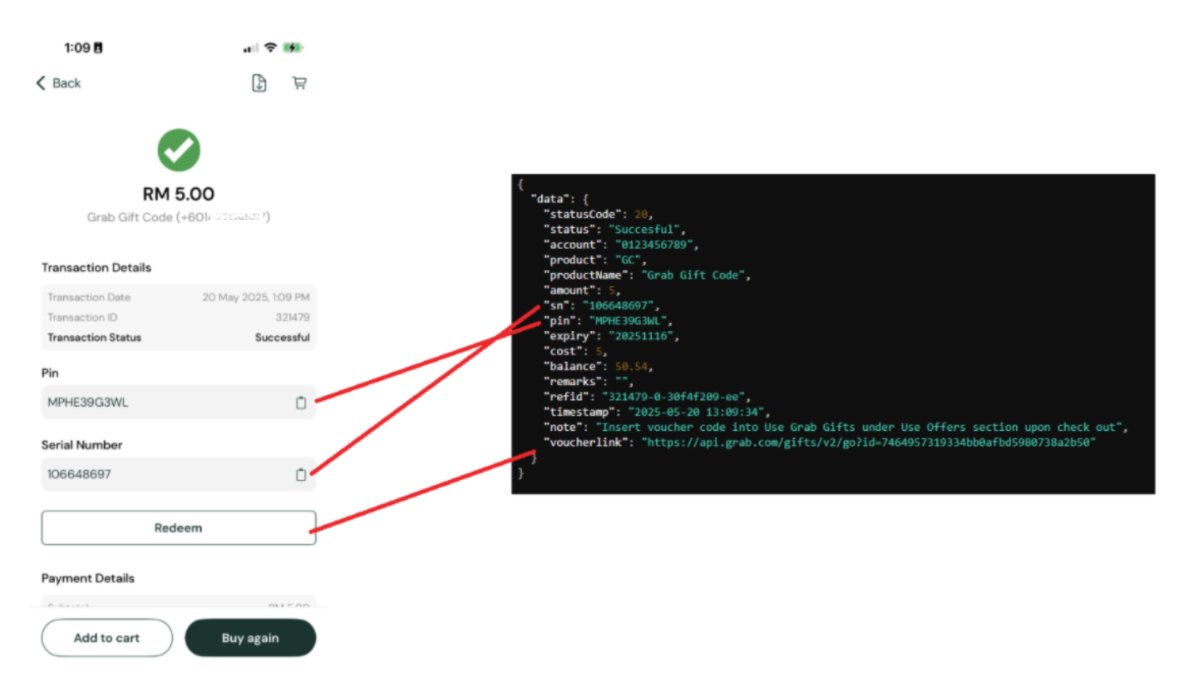

Success UX

After a successful transaction, display the following fields to the user:

Field	Description
sn	Serial number or identifier generated by the provider/operator. Include a Copy button.
pin	PIN for vouchers, gift cards, and similar products. Include a Copy button.
voucherlink	A URL to open in a web view for voucher redemption.
Share button	Allow the user to share the transaction via WhatsApp, email, SMS, etc.

DANGER

If a field (sn, pin, expiry, voucherlink) is not returned by the API, do not display that label or field to the user.

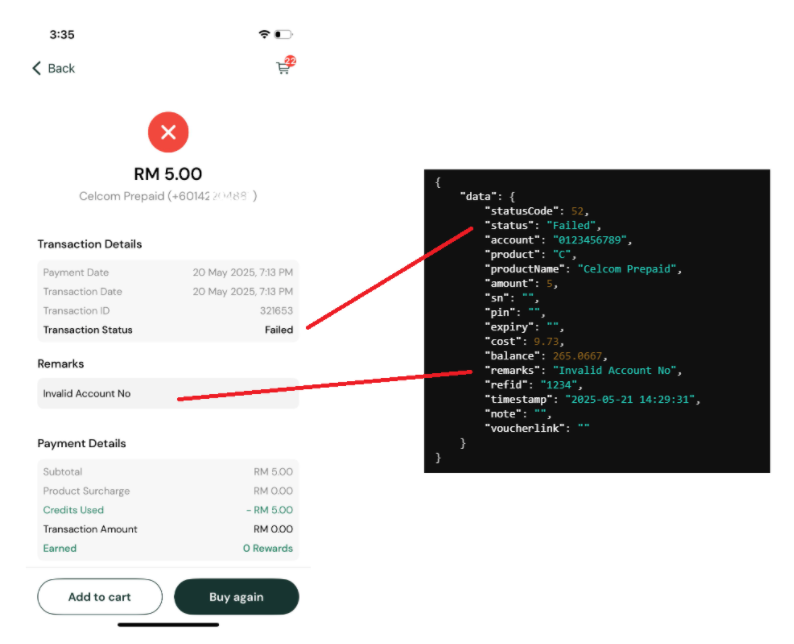

Failure UX

After a failed transaction, display the failure reason so the user understands what went wrong:

Field	Description
remarks	The failure reason returned by the API.

Error Handling

Error codes for failed transactions can be found in the Payment Errors reference.

WARNING

Staging server statuses and failure reasons might not match production due to limited validation.
